BareDuino V1 (classic)

BareDuino Revision 3

BareDuino Revision 3

When I began building robots I almost exclusively put together kits. Then I discoveredĀ the Arduino. The Arduino is a really popular electronics platform. Since then, I’ve made a LOT of projects that use the Arduino that I would like to make permanent. The problem is that it’s really expensive because an Arduino Uno costs about $30. Because the Arduino is open-source I thought: “Couldn’t I make a very cheap clone?”

This article has been copied over from my old blog, niekproductions.com. Please excuse any mistakes.

So I started designing in eagle CAD. First I placed the base-parts: an atmega328, a 1K resistor for auto-reset functionality and a 16Mhz crystal with 2 capacitors.

Then I decided to add a couple of other elements:

  • I wanted every pin on the atmega328 to have its own 5V and Ground pin. This will make it easier to plug in servo’s and other peripherals with a servo-connector.
  • I also added a pin-header with DTR, rx and tx to simplify the uploading of code.
  • A capacitor was added to the analog reference line
  • Then there was the power supply. Eventually i chose a 7805 5v regulator that accepts a input of 7-10 volts. I could’ve went with a LDO regulator, but this was cheaper.

When that was done, the etching started..

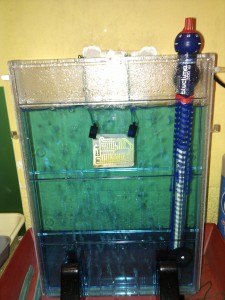

Transparent printer sheet In the etching tank

Etching

Done!

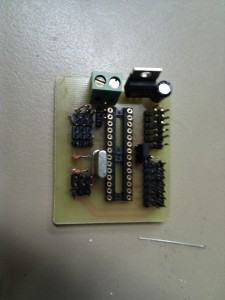

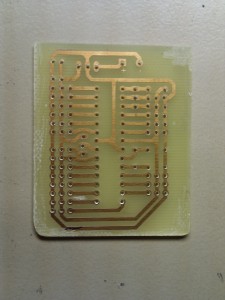

Bare PCB Populated PCB

Finished PCB

Here’s a video I made on the BareDuino v1:

The source files are released under BSD License atĀ the GitHub repository.
